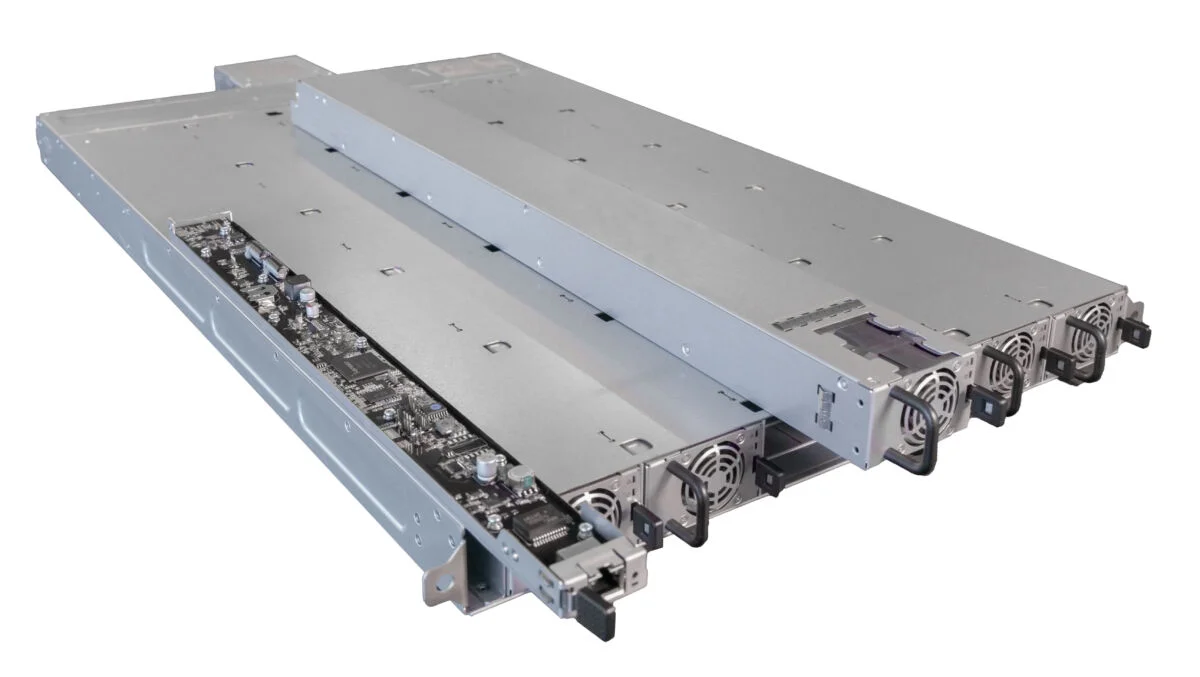

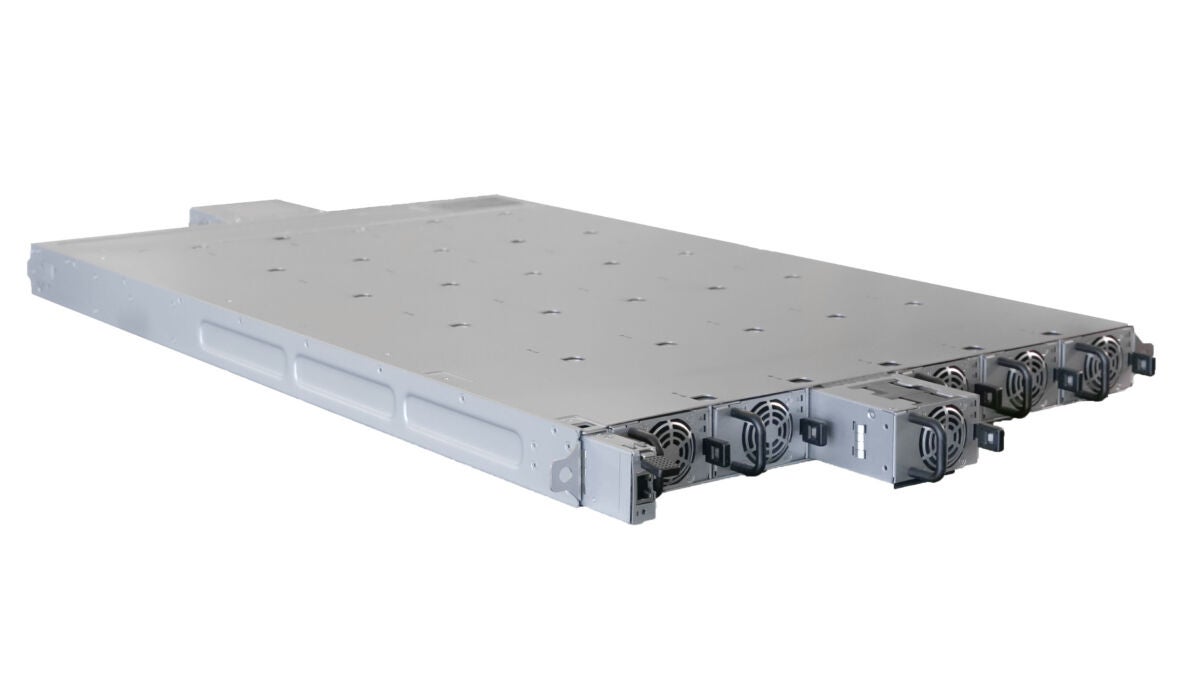

The Flex GB200 is latest generation of power shelves for power-demanding GPUs. It provides DC power to all the payloads inside a rack and consists of 6 PSUs with a maximum output power of 33kW in total.
| Feature | Specifications |
|---|---|
| Part number | Flex GB200 |
| Dimensions (H x W x L) | 44 x 465 x 766 mm / 1.73 x 18.3x 30.1 in |
| Output power maximum | 33kW |
| Output voltage | 50V |
| Output current | 760A |
| Input voltage range | AC input: 200-277VL-N 346-480V L-L (3 W+N+PE) 50/60Hz |
| Cooling | Cooling by PSU fans |
| Input connectors | SP10RSSS48M220A1/AA-2269 SP10RSSS48RM220A1/AA-226 |
| Output connectors | BK600 |
| Safety | IEC60950-1(CB) UL60950-1 (CAN/CSA) |
| EMC standards | Class A |
| Communication | MODBUS over RS-485 |
Download the Flex GB200 power shelves datasheet
